Report Cover Sheet

To create a report cover sheet, perform the following steps:

1.     Click Add Report button on the Report Set Assembler toolbar.

You are prompted to select a Report Type and there are Enterprise and CADMeasure folders which contain standard types.

In the Enterprise folder, you will find Front Page.

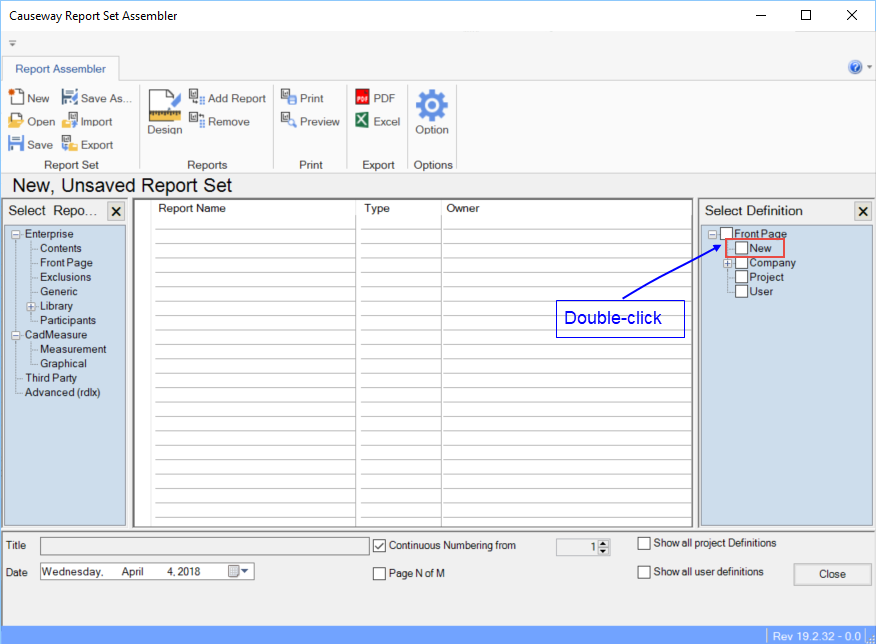

2.     Double-click on Front page to open the definition panel on the right, as shown in the following screenshot.

Note: Report Set Assembler has other options for use in CATO which are not applicable in CADMeasure and can be ignored. For example, Contents, Exclusions and Library.

3.     Double-click New in the Front Page tree on the right pane.

4.     Change the following definitions as necessary. For additional information, see CATO Report Online Help.

·         Page Settings

·         Line Styles

·         Header/Footer

5.     Save the Report and give it a name, in this case 'Causeway Cover Sheet'.

6.     Select Exit from the File menu.

The Report will be listed as a new entry under the Front Page Definitions
